Demonstrate the use of PINT in a script
This notebook is primarily designed to operate as a plain .py script. You should be able to run the .py script that occurs in the docs/examples/ directory in order to carry out a simple fit of a timing model to some data. You should also be able to run the notebook version as it is here (it may be necessary to make notebooks to produce a .ipynb version using jupytext).
[1]:
import os
import astropy.units as u
# This will change which output method matplotlib uses and may behave better on some machines
# import matplotlib
# matplotlib.use('TKAgg')
import matplotlib.pyplot as plt
import pint.fitter
import pint.residuals
import pint.toa
from pint.models import get_model_and_toas
import pint.logging
import os
# setup logging
pint.logging.setup(level="INFO")
[1]:
1
[2]:
import pint.config
parfile = pint.config.examplefile("NGC6440E.par")
timfile = pint.config.examplefile("NGC6440E.tim")
assert os.path.exists(parfile)
assert os.path.exists(timfile)
[3]:
# Read the timing model and the TOAs
m, t = get_model_and_toas(parfile, timfile)
If we wanted to do things separately we could do
# Define the timing model
m = get_model(parfile)
# Read in the TOAs, using the solar system ephemeris and other things from the model
t = pint.toa.get_TOAs(timfile, model=m)
If we wanted to select some subset of the TOAs, there are tools to do that. Most easily you make a new TOAs object containing the subset you care about (we will make but not use them):
Use every other TOA
[4]:
t_every_other = t[::2]
Use only TOAs with errors < 30 us
[5]:
t_small_errors = t[t.get_errors() < 30 * u.us]
Use only TOAs from the GBT (although this is all of them for this example)
[6]:
t_gbt = t[t.get_obss() == "gbt"]
[7]:
# Print a summary of the TOAs that we have
print(t.get_summary())
Number of TOAs: 62
Number of commands: 0
Number of observatories: 1 ['gbt']
MJD span: 53478.286 to 54187.587
Date span: 2005-04-18 06:51:39.290648106 to 2007-03-28 14:05:44.808308037
gbt TOAs (62):
Min freq: 1549.609 MHz
Max freq: 2212.109 MHz
Min error: 13.2 us
Max error: 118 us
Median error: 22.1 us
[8]:

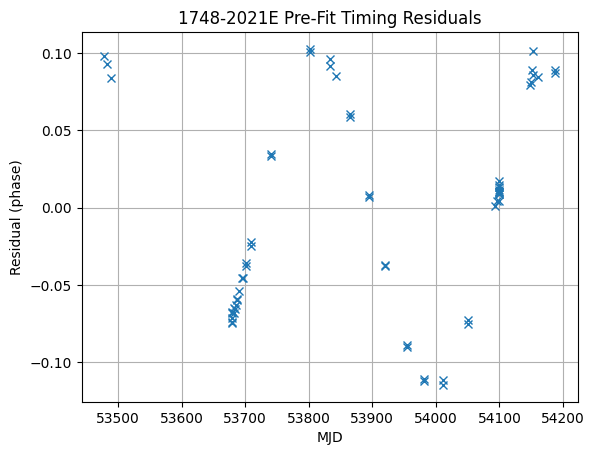

# These are pre-fit residuals
rs = pint.residuals.Residuals(t, m).phase_resids
xt = t.get_mjds()
plt.plot(xt, rs, "x")
plt.title(f"{m.PSR.value} Pre-Fit Timing Residuals")
plt.xlabel("MJD")
plt.ylabel("Residual (phase)")
plt.grid()
plt.show()
[9]:
# Now do the fit
print("Fitting.")
f = pint.fitter.DownhillWLSFitter(t, m)
f.fit_toas()
# f = pint.fitter.DownhillGLSFitter(t, m)
# f.fit_toas(full_cov=True)
Fitting.
[10]:
# Print some basic params
print("Best fit has reduced chi^2 of", f.resids.reduced_chi2)
print("RMS in phase is", f.resids.phase_resids.std())
print("RMS in time is", f.resids.time_resids.std().to(u.us))
Best fit has reduced chi^2 of 1.0638341384814312405
RMS in phase is 0.0020495747168829907
RMS in time is 33.334290189188934 us
[11]:
# Show the parameter correlation matrix
corm = f.get_parameter_correlation_matrix(pretty_print=True)
Parameter correlation matrix:
RAJ DECJ F0 F1 DM
RAJ 1.000
DECJ -0.072 1.000
F0 -0.087 0.247 1.000
F1 0.294 -0.344 -0.798 1.000
DM -0.005 0.065 0.007 0.058 1.000
[12]:
print(f.get_summary())
Fitted model using downhill_wls method with 5 free parameters to 62 TOAs
Prefit residuals Wrms = 1090.5801805746107 us, Postfit residuals Wrms = 21.182108436303945 us
Chisq = 59.575 for 56 d.o.f. for reduced Chisq of 1.064
PAR Prefit Postfit Units
=================== ==================== ============================ =====
PSR 1748-2021E 1748-2021E None
EPHEM DE421 DE421 None
CLOCK TT(BIPM2019) TT(BIPM2019) None
UNITS TDB TDB None
START 53478.3 d
FINISH 54187.6 d
TIMEEPH FB90 FB90 None
T2CMETHOD IAU2000B IAU2000B None
DILATEFREQ N None
DMDATA N None
NTOA 0 None
CHI2 59.5747
CHI2R 1.06383
TRES 21.1821 us
POSEPOCH 53750 d
PX 0 mas
RAJ 17h48m52.75s 17h48m52.8003469s +/- 0.00014 hourangle_second
DECJ -20d21m29s -20d21m29.38334051s +/- 0.033 arcsec
PMRA 0 mas / yr
PMDEC 0 mas / yr
F0 61.4855 61.485476554372(18) Hz
PEPOCH 53750 d
F1 -1.181e-15 -1.1813(14)×10⁻¹⁵ Hz / s
TZRMJD 53801.4 d
TZRSITE 1 1 None
TZRFRQ 1949.61 MHz
CORRECT_TROPOSPHERE N None
PLANET_SHAPIRO N None
NE_SW 0 1 / cm3
NE_SW1 0 1 / (yr cm3)
SWP 2
SWM 0 None
DM 223.9 224.114(35) pc / cm3
Derived Parameters:
Period = 0.016264003404376±0.000000000000005 s
Pdot = (3.125±0.004)×10⁻¹⁹
Characteristic age = 8.246e+08 yr (braking index = 3)
Surface magnetic field = 2.28e+09 G
Magnetic field at light cylinder = 4881 G
Spindown Edot = 2.868e+33 erg / s (I=1e+45 cm2 g)
[13]:
plt.errorbar(
xt.value,
f.resids.time_resids.to_value(u.us),
t.get_errors().to_value(u.us),
fmt="x",
)
plt.title(f"{m.PSR.value} Post-Fit Timing Residuals")
plt.xlabel("MJD")
plt.ylabel("Residual (us)")
plt.grid()
plt.show()
[14]:
f.model.write_parfile("/tmp/output.par", "wt")
print(f.model.as_parfile())
# Created: 2024-12-18T17:09:48.779177
# PINT_version: 0+untagged.722.g91be315
# User: docs
# Host: build-26631508-project-85767-nanograv-pint
# OS: Linux-5.19.0-1028-aws-x86_64-with-glibc2.35
# Python: 3.11.10 (main, Nov 5 2024, 16:13:19) [GCC 11.4.0]
# Format: pint
# read_time: 2024-12-18T17:09:45.627869
# allow_tcb: False
# convert_tcb: False
# allow_T2: False
# original_name: /home/docs/checkouts/readthedocs.org/user_builds/nanograv-pint/envs/stable/lib/python3.11/site-packages/pint/data/examples/NGC6440E.par
PSR 1748-2021E
EPHEM DE421
CLK TT(BIPM2019)
UNITS TDB
START 53478.2858714195382639
FINISH 54187.5873241702319097
TIMEEPH FB90
T2CMETHOD IAU2000B
DILATEFREQ N
DMDATA N
NTOA 62
CHI2 59.57471175496015
CHI2R 1.0638341384814312
TRES 21.182108436303946443
RAJ 17:48:52.80034690 1 0.00013524663578313301
DECJ -20:21:29.38334051 1 0.03285268549435132329
PMRA 0.0
PMDEC 0.0
PX 0.0
POSEPOCH 53750.0000000000000000
F0 61.48547655437249947 1 1.8086084389702729588e-11
F1 -1.1813316933329982105e-15 1 1.441854039880340105e-18
PEPOCH 53750.0000000000000000
TZRMJD 53801.3860512007484954
TZRSITE 1
TZRFRQ 1949.609
CORRECT_TROPOSPHERE N
PLANET_SHAPIRO N
SOLARN0 0.0
NE_SW1 0.0
SWM 0
DM 224.11379639285328576 1 0.034938980510629949472
